Sizes

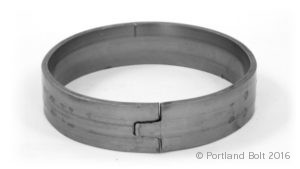

4” Diameter Split Rings

four-inch-split-ring

  • Used in trusses 3” and larger
  • Used with ¾” bolt
  • Used with Grooving tool #302 / TSR102
  • Plain or Galvanized

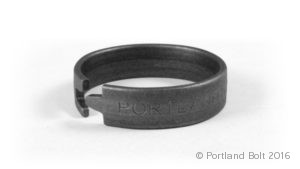

2-1/2” Diameter Split Rings

two-half-inch-split-ring

  • Used in 2” rafters and trusses
  • Used with ½” bolt
  • Used with Grooving tool # 301 / TSR64
  • Plain or Galvanized

Split Ring Dimensions

Bolt Diameter Inside Diameter Depth Lumber Minimum Dimension Weight Per 100 Pieces Part Numbers
Ring In 1 Face Ring In Both Faces Plain Galvanized Plain Galvanized
1⁄2 21⁄2 3⁄4 1 x 31⁄2 11⁄2 x 31⁄2 27 28 18683 18684
3⁄4 4 1 1 x 51⁄2 11⁄2 x 51⁄2 68 70 18685 18686
